SULILG四合一电调8s
简介：固件和我发的单体电调固件一样，只要分别刷入4次就好了 上次https://oshwhub.com/shuyedeye/stm32h743vih6 这个飞控测试视频配的电调就这个 ....... 电调没什么好说的
项目参数
固件和我发的单体电调固件一样，只要分别刷入4次就好了
上次https://oshwhub.com/shuyedeye/stm32h743vih6 这个飞控测试视频配的电调就这个
....... 电调没什么好说的

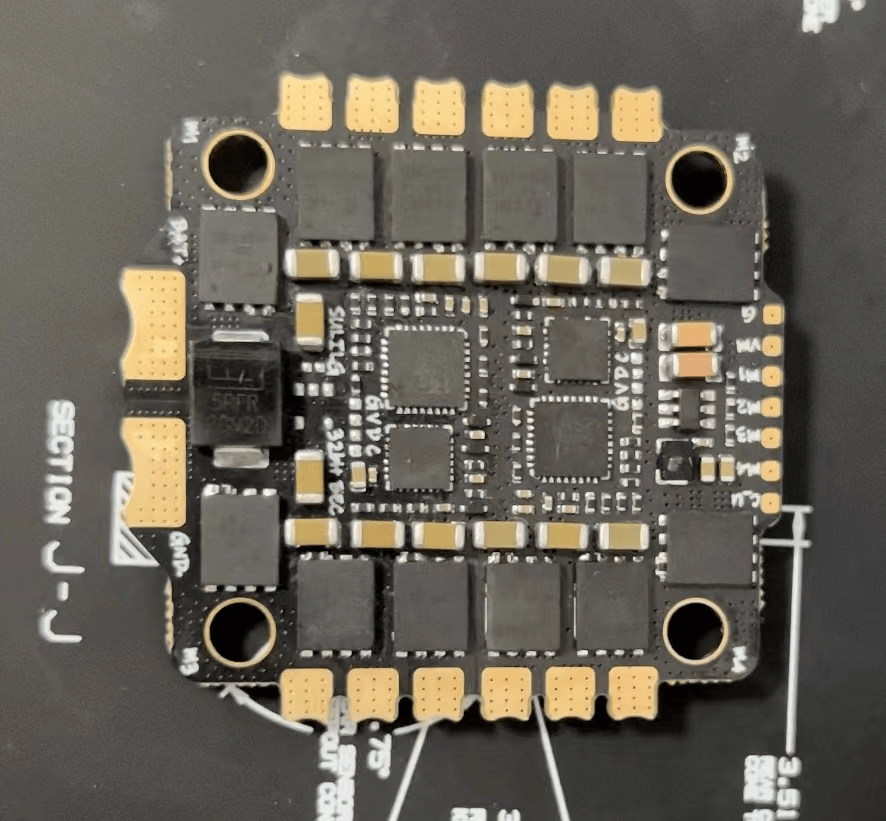

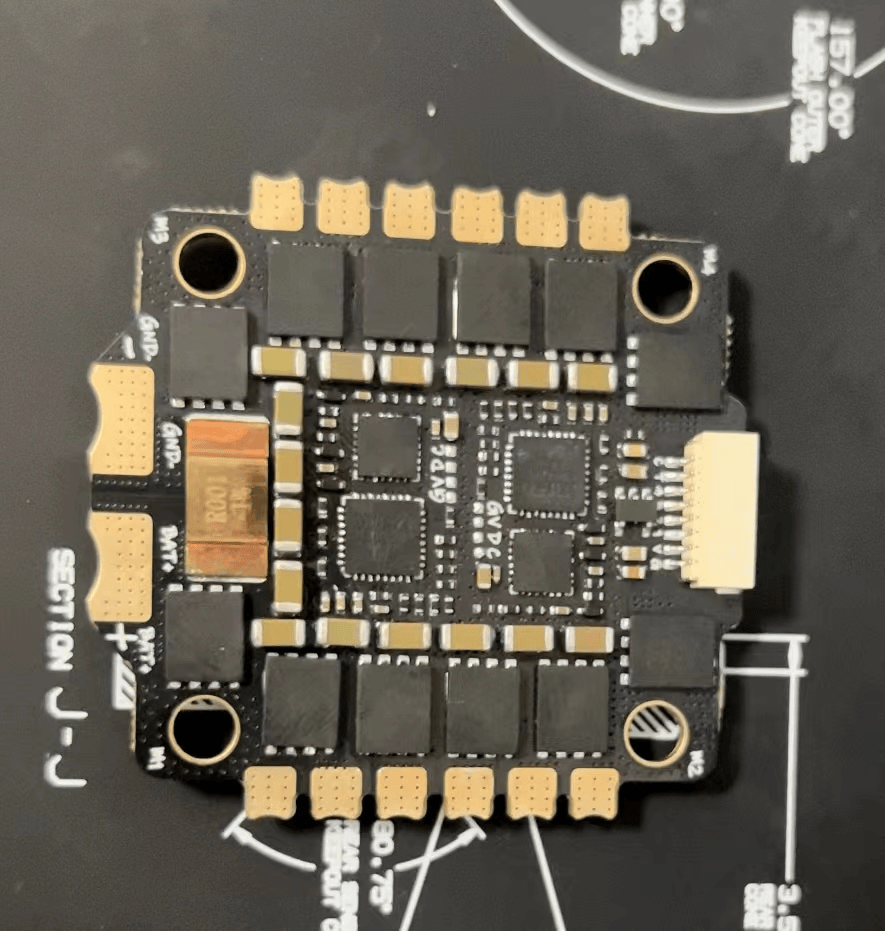

实物图
设计图
Board1_1

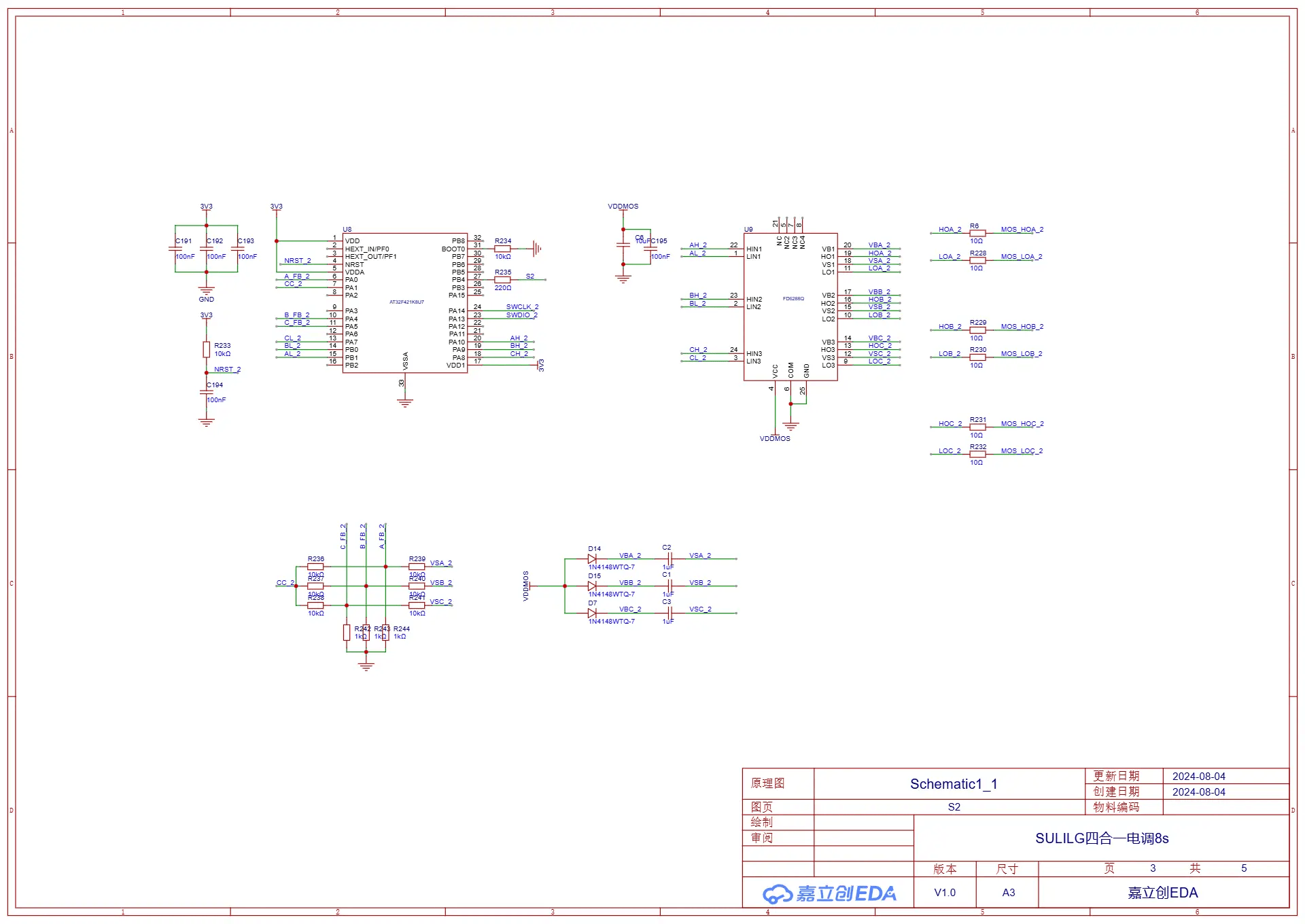

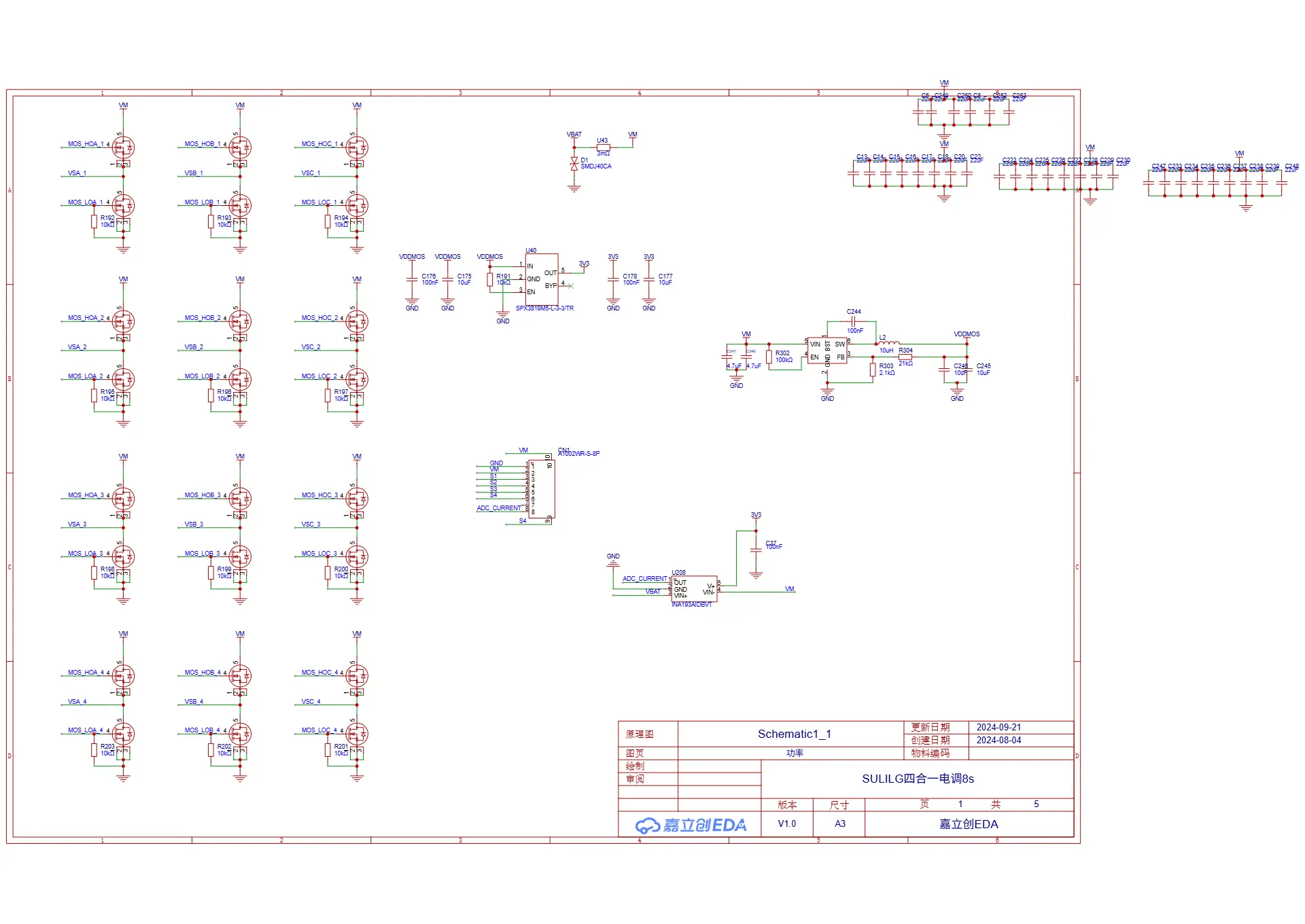

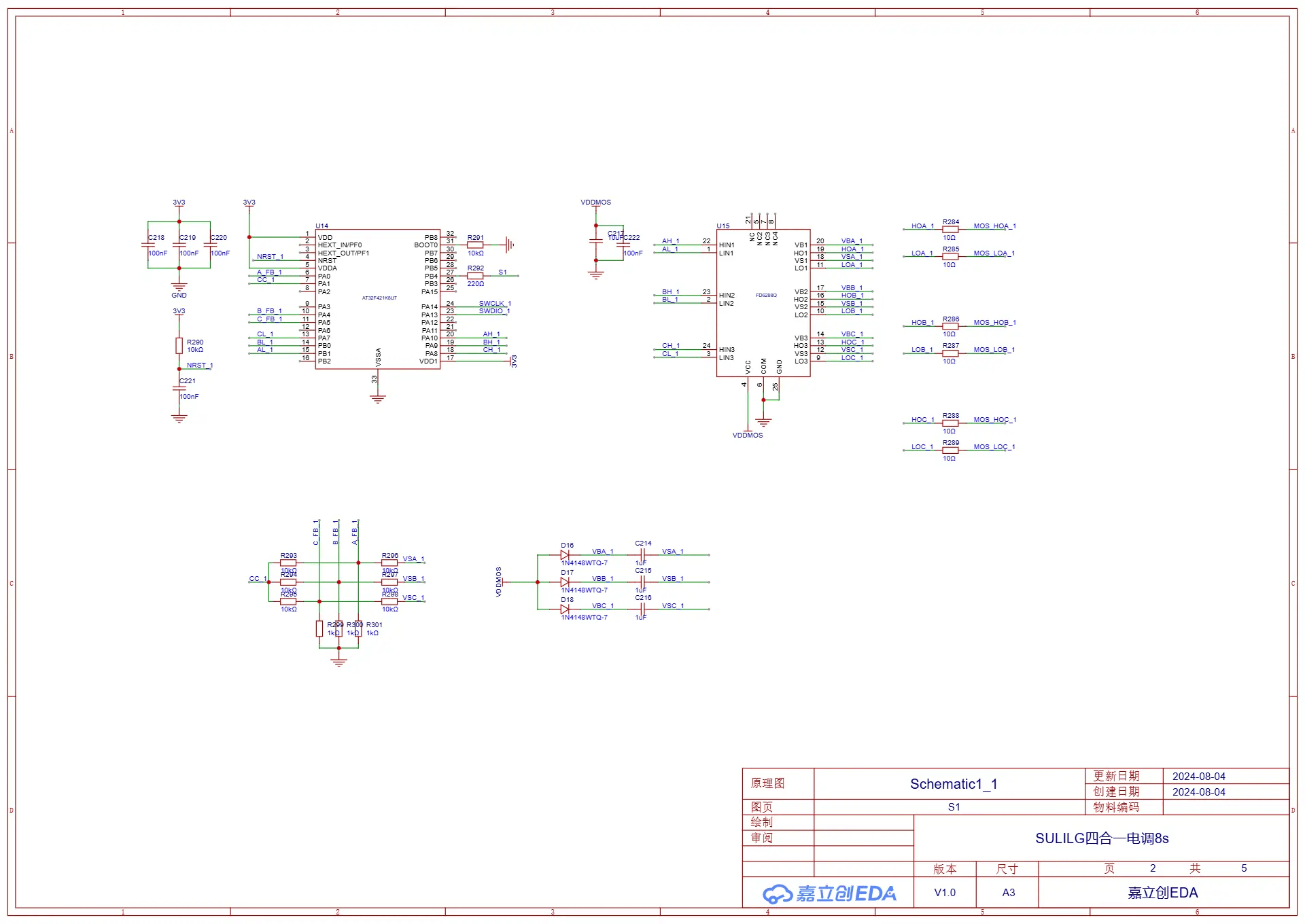

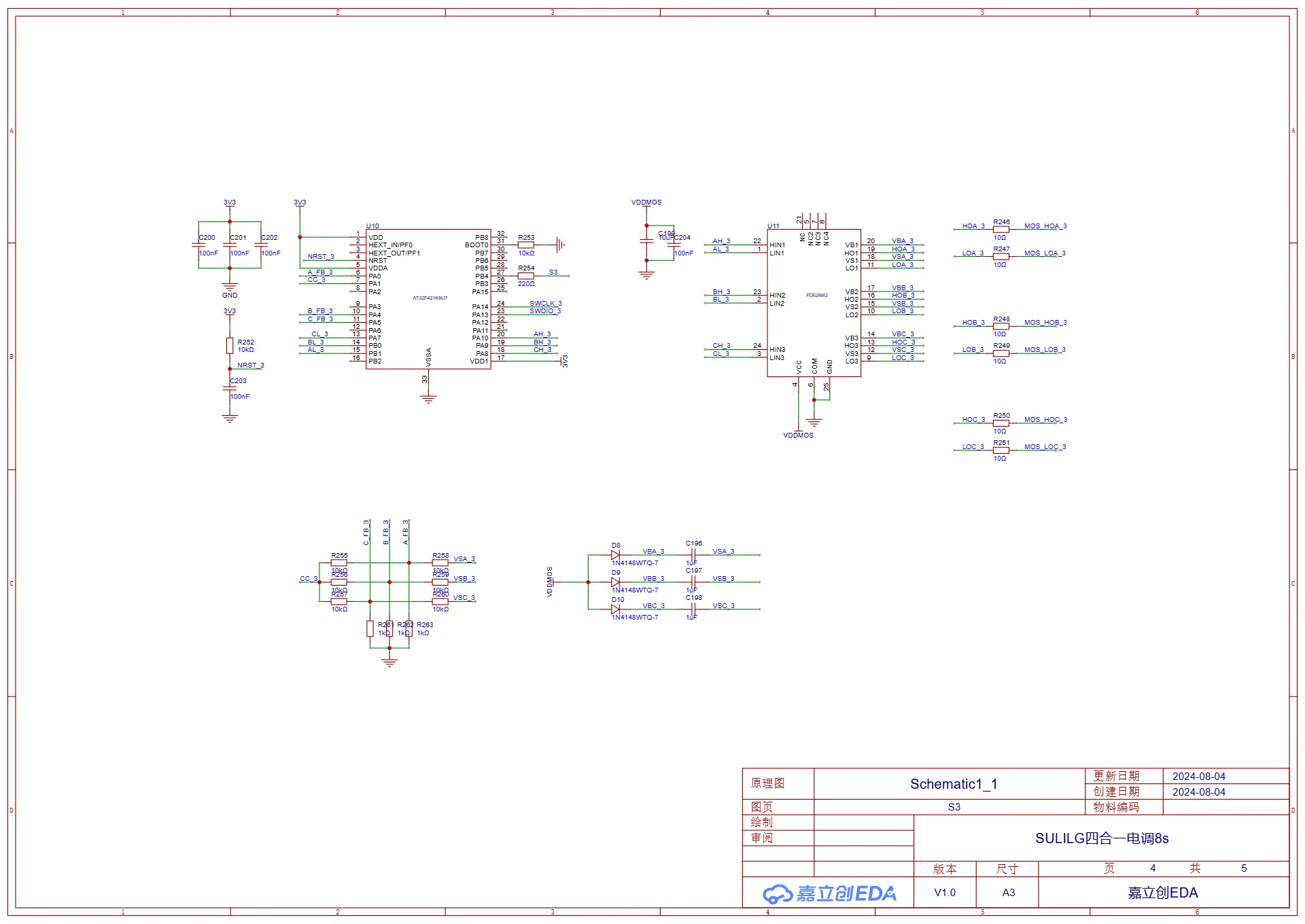

原理图（1 / 4）
BOM
ID | Name | Designator | Footprint | Quantity | Manufacturer Part | Manufacturer | Supplier | Supplier Part |
|---|---|---|---|---|---|---|---|---|
1 | A1002WR-S-8P | CN1 | CONN-SMD_A1002WR-S-8P | 1 | A1002WR-S-8P | CJT(长江连接器) | LCSC | C239526 |
2 | 22uF | C5,C8,C13,C14,C15,C16,C17,C18,C20,C22,C230,C229,C228,C223,C224,C225,C226,C227,C236,C234,C235,C233,C238,C237,C239,C247,C248,C249,C250,C252,C253 | C1206 | 31 | C3216X5R1V226MTJ00E | TDK | LCSC | C342620 |
3 | SMDJ40CA | D1 | SMC_L6.9-W5.9-LS7.9-BI | 1 | SMDJ40CA | BORN(伯恩半导体) | LCSC | C2842374 |
4 | SPX3819M5-L-3-3/TR | U40 | SOT-23-5_L3.0-W1.7-P0.95-LS2.8-BL | 1 | SPX3819M5-L-3-3/TR | MaxLinear(迈凌) | LCSC | C9055 |
5 | 10uF | C175,C177,C245,C246,C217,C6,C199,C208 | C0603_1 | 8 | CL10A106MA8NRNC | SAMSUNG(三星) | LCSC | C96446 |
6 | 100nF | C176,C178 | C0603 | 2 | CC0603KRX7R9BB104 | YAGEO(国巨) | LCSC | C14663 |
7 | 10kΩ | R191,R192,R193,R194,R195,R196,R197,R198,R199,R200,R201,R202,R203,R298,R297,R296,R291,R290,R293,R294,R295,R234,R239,R237,R238,R236,R240,R241,R233,R253,R258,R256,R257,R255,R259,R260,R252,R272,R277,R275,R276,R274,R278,R279,R271 | R0402 | 45 | RC0402FR-0710KL | YAGEO(国巨) | LCSC | C60490 |
8 | CSD18540Q5B | Q25,Q26,Q27,Q28,Q29,Q30,Q31,Q32,Q33,Q34,Q35,Q36,Q37,Q38,Q39,Q40,Q41,Q42,Q43,Q44,Q45,Q46,Q47,Q48 | VSON-CLIP-8_L5.0-W6.0-P1.27-BL | 24 | CSD18540Q5B | TI(德州仪器) | LCSC | C86513 |
9 | 3mΩ | U43 | R3920 | 1 | HoSS3920-5W-3mR-1% | Milliohm(毫欧) | LCSC | C5336200 |
10 | 4.7uF | C240,C241 | C1206 | 2 | CM316X7S475K100AT | Kyocera AVX | LCSC | C2900750 |
11 | 100kΩ | R302 | R0402 | 1 | RC0402FR-07100KL | YAGEO(国巨) | LCSC | C60491 |
12 | 100nF | C244,C221,C222,C220,C219,C218,C195,C194,C193,C192,C191,C204,C203,C202,C201,C200,C213,C212,C211,C210,C209 | C0402 | 21 | GRM155R71H104KE14D | muRata(村田) | LCSC | C77020 |
13 | 2.1kΩ | R303 | R0402 | 1 | RC0402FR-07100KL | YAGEO(国巨) | LCSC | |
14 | 21kΩ | R304 | R0402 | 1 | RC0402FR-07100KL | YAGEO(国巨) | LCSC | |
15 | 10uH | L2 | IND-SMD_L2.5-W2.0 | 1 | FTC252012S100MBCA | cjiang(长江微电) | LCSC | C5832376 |
16 | JW5026 | U207 | SOT-23-6_L2.9-W1.6-P0.95-LS2.8-BR | 1 | JW5026 | Joulwatt(杰华特) | LCSC | C185109 |
17 | INA193AIDBVT | U208 | SOT-23-5_L2.9-W1.6-P0.95-LS2.8-BR | 1 | INA193AIDBVT | TI(德州仪器) | LCSC | C2871236 |
18 | 100nF | C37 | C0402 | 1 | CC0402KRX7R7BB104 | YAGEO(国巨) | LCSC | C60474 |
19 | 1N4148WTQ-7 | D16,D17,D18,D14,D15,D7,D8,D9,D10,D11,D12,D13 | SOD-523_L1.2-W0.8-LS1.6-FD | 12 | 1N4148WTQ-7 | DIODES(美台) | LCSC | C526201 |
20 | 220Ω | R292,R235,R254,R273 | R0402 | 4 | 0402WGF2200TCE | UNI-ROYAL(厚声) | LCSC | C25091 |
21 | 1kΩ | R301,R300,R299,R242,R243,R244,R261,R262,R263,R280,R281,R282 | R0402 | 12 | 0402WGF1001TCE | UNI-ROYAL(厚声) | LCSC | C11702 |
22 | 1uF | C215,C216,C214,C1,C2,C3,C197,C196,C198,C206,C205,C207 | C0402 | 12 | C1518208 | |||
23 | 10Ω | R289,R284,R287,R285,R286,R288,R230,R229,R228,R6,R232,R231,R249,R248,R247,R246,R251,R250,R268,R267,R266,R265,R270,R269 | R0402 | 24 | 0402WGF100JTCE | UNI-ROYAL(厚声) | LCSC | C25077 |
24 | FD6288Q | U15,U9,U11,U13 | QFN-24_L4.0-W4.0-P0.50-BL-EP2.6 | 4 | C328453 | |||
25 | AT32F421K8U7 | U14,U8,U10,U12 |
